Falling Film Evaporator

Product Structure

Adopts a vertical shell-and-tube heat exchanger design, integrated with a centrifugal separator to achieve highly efficient vapor-liquid separation.

Operating Principle

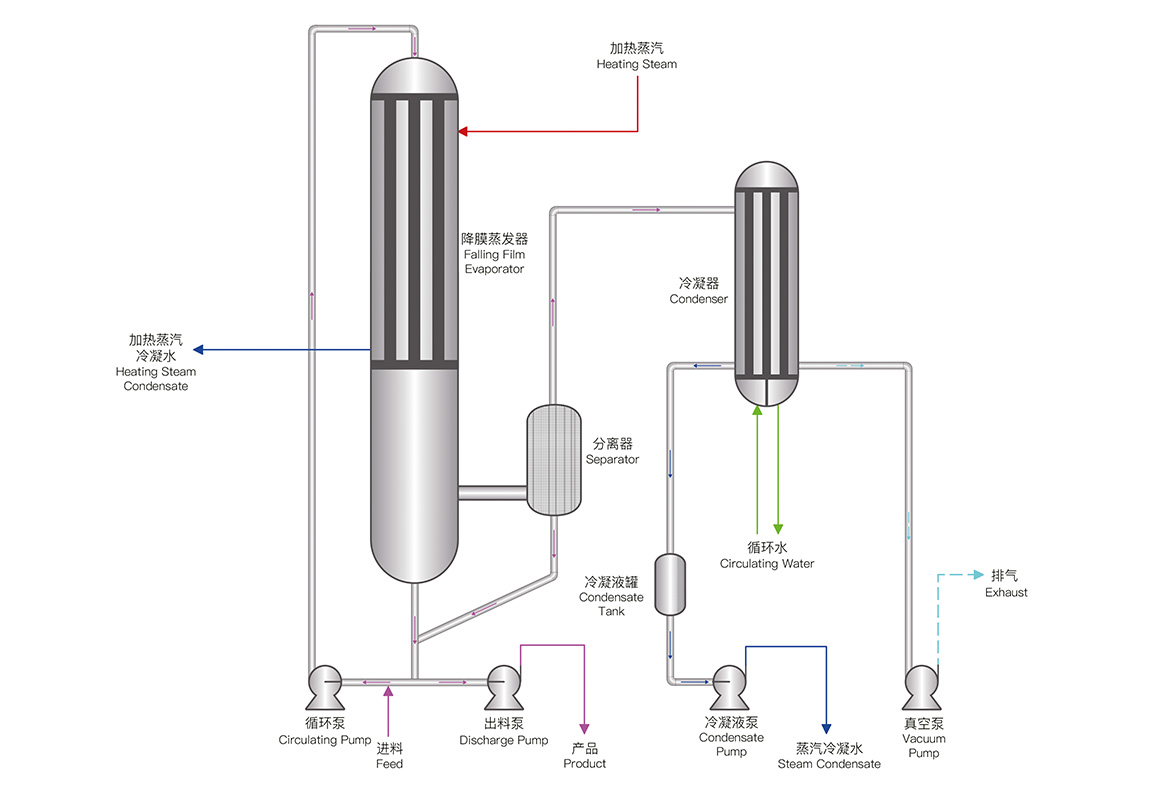

Concentrated liquid enters from the top of the heating tubes and flows downward along the inner walls under gravity, forming a thin film. External heating induces boiling and partial evaporation of the liquid film. The generated vapor accelerates the downward flow of the liquid film. In the lower section of the tube bundle and the centrifugal separator, vapor is separated from the remaining liquid.

To prevent localized dry walls and scaling, a specialized liquid distributor is installed at the evaporator top to ensure uniform wetting of heating surfaces, particularly in the lower tube sections. Wetting efficiency can also be improved by extending heating tubes, partitioning the evaporator chamber, or implementing product recirculation.
