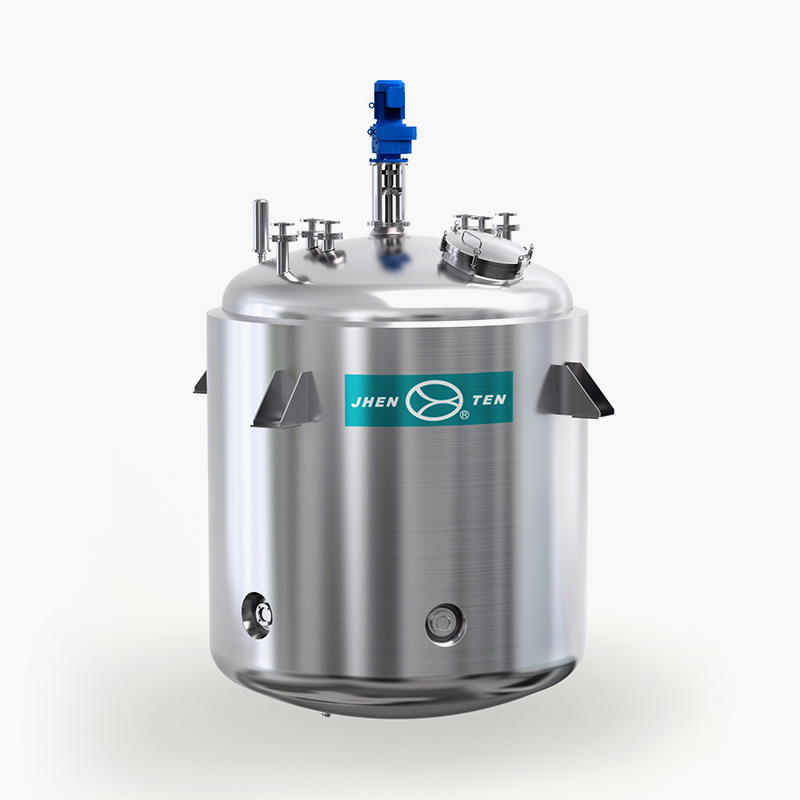

Reactor

Consult Now

Overview

Feature

? Reactor made of 316L or 304 has excellent mechanical properties, can bear high pressure, also can withstand the impact of the massive solid materials when feeding;With rapid heating, high temperature resistant, corrosion resistance, no rust, health, no pollution, etc.
? Agitator with anchor type, frame type, impeller or turbine;using cycloidal reducer, gear reducer, and frequency control;Mechanical seal sealing device can use health level;Can use jacket, half pipe coil, cooling/heating coil structure, heating mode with steam, electric heating, heat conduction oil;Can be arbitrarily selected according to the user's technique.
? Reactor has 600L and 20000L, and other specifications, according to the actual requirement of customers.

Application

Apply to petrochemical, fine chemistry, rubber industry, pesticide, dye, bio-pharmaceuticals and beverage, to complete the vulcanization, hydrogenation, alkylation, polymerization, condensation process.

Technical Parameter

Parameters		Model	JTRFY—600	JTRFY—1000	JTRFY—2000	JTRFY—3000	JTRFY—4000	JTRFY—5000
Effective volume：L			600	1000	2000	3000	4000	5000
Barrel	Diameter：mm		Φ900	Φ1100	Φ1300	Φ1600	Φ1700	Φ1800
Barrel	Height：mm		900	1000	1500	1500	1800	1800
Agitator	Power：kW		1.1	1.5	2.2	2.2	3	4
Agitator	RPM：r/min		200（Push type）or 60（Anchor frame）（The design can be adjusted according to customer use condition）

JTRFY—6000	JTRFY—8000	JTRFY—10000	JTRFY—12000	JTRFY—15000	JTRFY—20000
6000	8000	10000	12000	15000	20000
Φ1900	Φ2000	Φ2200	Φ2400	Φ2600	Φ2800
2000	2200	2400	2500	2700	3000
4	5.5	7.5	7.5	11	11
200（Push type）or 60（Anchor frame）（The design can be adjusted according to customer use condition）
The above-mentioned data is the standard, for reference only. It can customize according to customer's requirements.
